CVPR 2026

FluidGaussian: Propagating Simulation-Based Uncertainty Toward Functionally-Intelligent 3D Reconstruction

Yuqiu Liu*, Jialin Song*, Marissa Ramirez de Chanlatte, Rochishnu Chowdhury, Rushil Paresh Desai, Wuyang Chen, Daniel Martin, Michael Mahoney
* equal contribution
Paper Code
Teaser

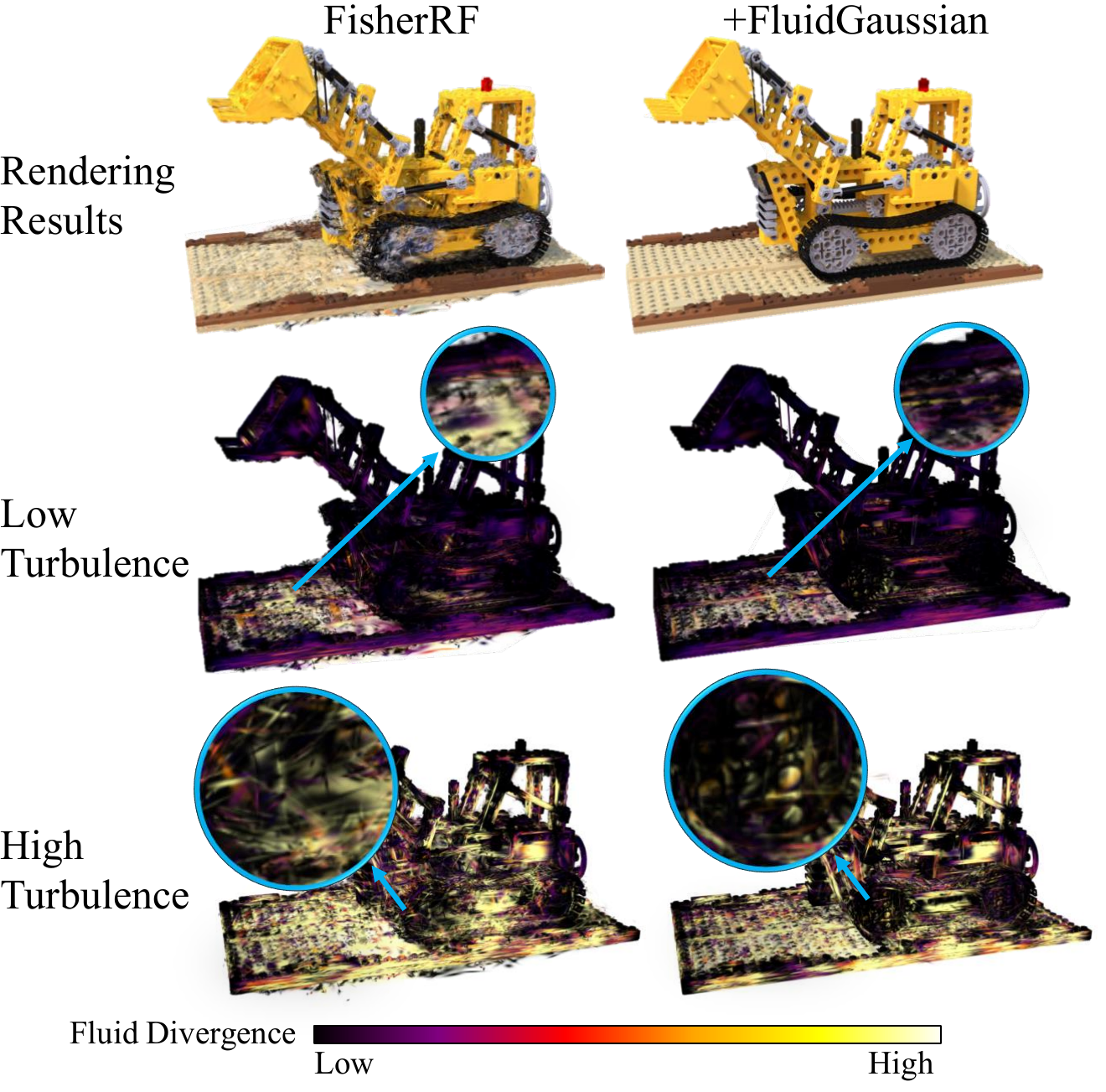

When only visual fidelity is optimized (left), reconstructions may look correct visually and yet fail functionally: fluid simulation exhibits excessive velocity-field divergence, worsening from low to high turbulence. With FluidGaussian (right), both visual fidelity and simulation fidelity are better preserved.

Abstract

Real objects that inhabit the physical world follow physical laws and thus behave plausibly during interaction with other physical objects. However, current methods that perform 3D reconstructions of real-world scenes from multi-view 2D images optimize primarily for visual fidelity, overlooking body contacts and couplings, conflating function-critical regions (e.g., aerodynamic or hydrodynamic surfaces) with ornamentation, and reconstructing structures suboptimally, even when physical regularizers are added.

We propose FluidGaussian, a plug-and-play method that tightly couples geometry reconstruction with ubiquitous fluid-structure interactions to assess surface quality at high granularity. We define a simulation-based uncertainty metric induced by fluid simulations and integrate it with active learning to prioritize views that improve both visual and physical fidelity.

In an empirical evaluation on NeRF Synthetic (Blender), Mip-NeRF 360, and DrivAerNet++, FluidGaussian yields up to +8.6% visual PSNR and −62.3% velocity divergence during fluid simulations.

Method

Pipeline

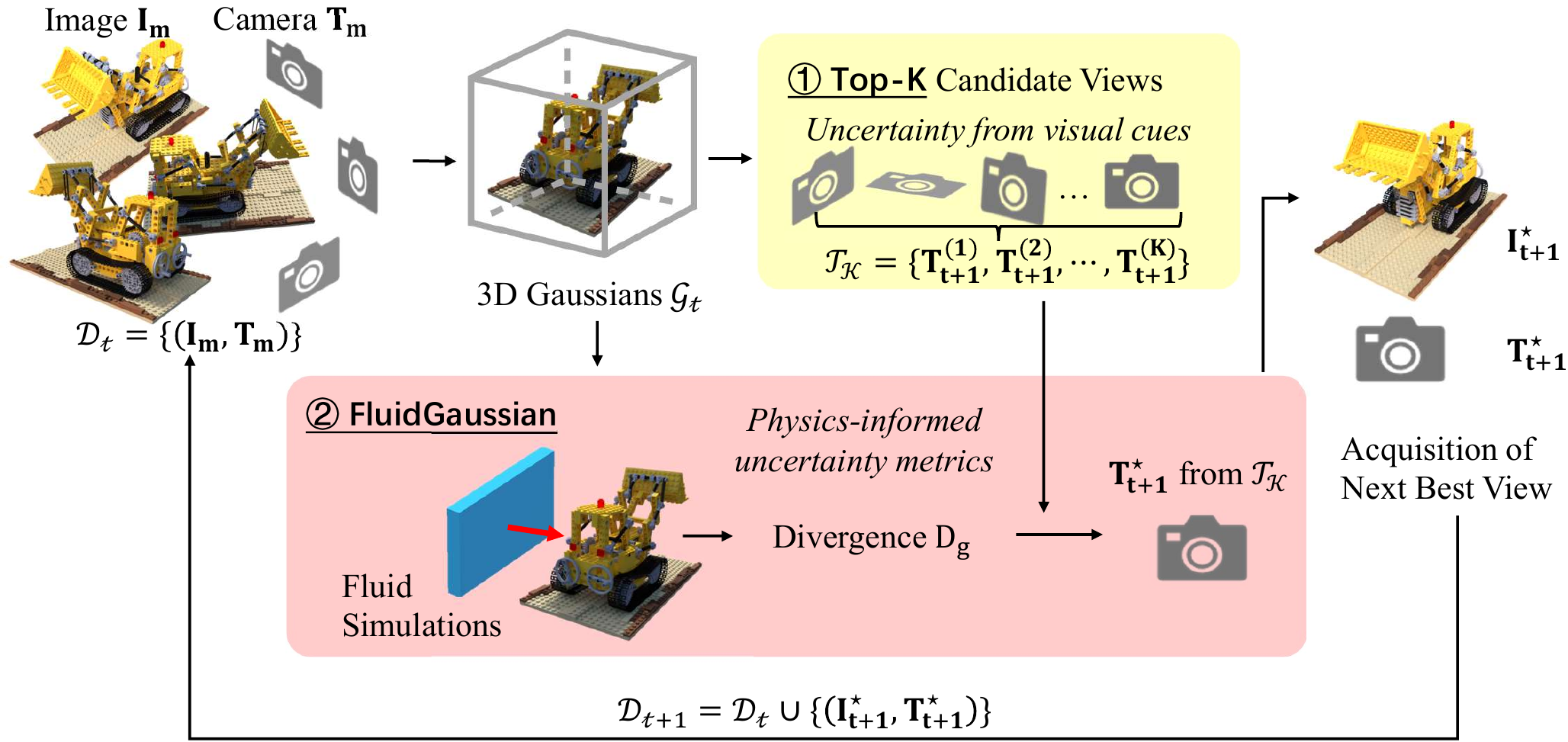

Overview of FluidGaussian. Physics-awareness is introduced into 3D reconstruction via two steps: (1) a vision-based NBV method proposes K candidate camera poses; (2) a physics-informed uncertainty score derived from fluid-structure simulations re-ranks the candidates and selects the best next view.

1
Vision-based candidates. An existing NBV planner (ActiveNeRF or FisherRF) proposes K candidate poses based on visual uncertainty.
2
Physics-informed re-ranking. 3D Gaussians are voxelized as a solid boundary; fluid particles (SPH) are released from five directions and per-Gaussian divergence is accumulated.
3
Next-best-view selection. Candidate poses are ranked by visibility-weighted divergence; the pose with highest physical uncertainty is selected.

Results

Qualitative results

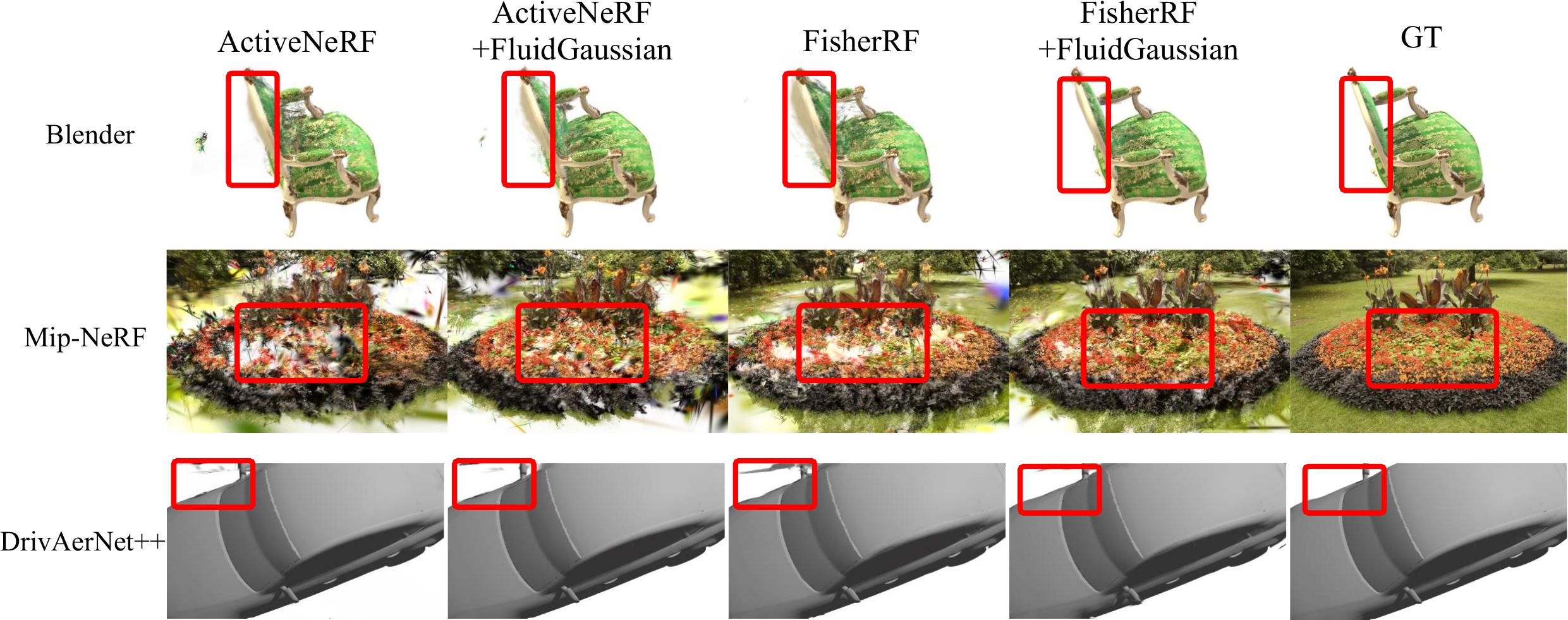

Visualization on Blender, MipNeRF360, and DrivAerNet++. Columns from left to right: ActiveNeRF, ActiveNeRF + FluidGaussian, FisherRF, FisherRF + FluidGaussian, Ground Truth.

BibTeX

@inproceedings{liu2026fluidgaussian,
  title     = {FluidGaussian: Propagating Simulation-Based Uncertainty
               Toward Functionally-Intelligent 3D Reconstruction},
  author    = {Liu, Yuqiu and Song, Jialin and Ramirez de Chanlatte, Marissa
               and Chowdhury, Rochishnu and Desai, Rushil Paresh
               and Chen, Wuyang and Martin, Daniel and Mahoney, Michael},
  booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision
               and Pattern Recognition (CVPR)},
  year      = {2026}
}
